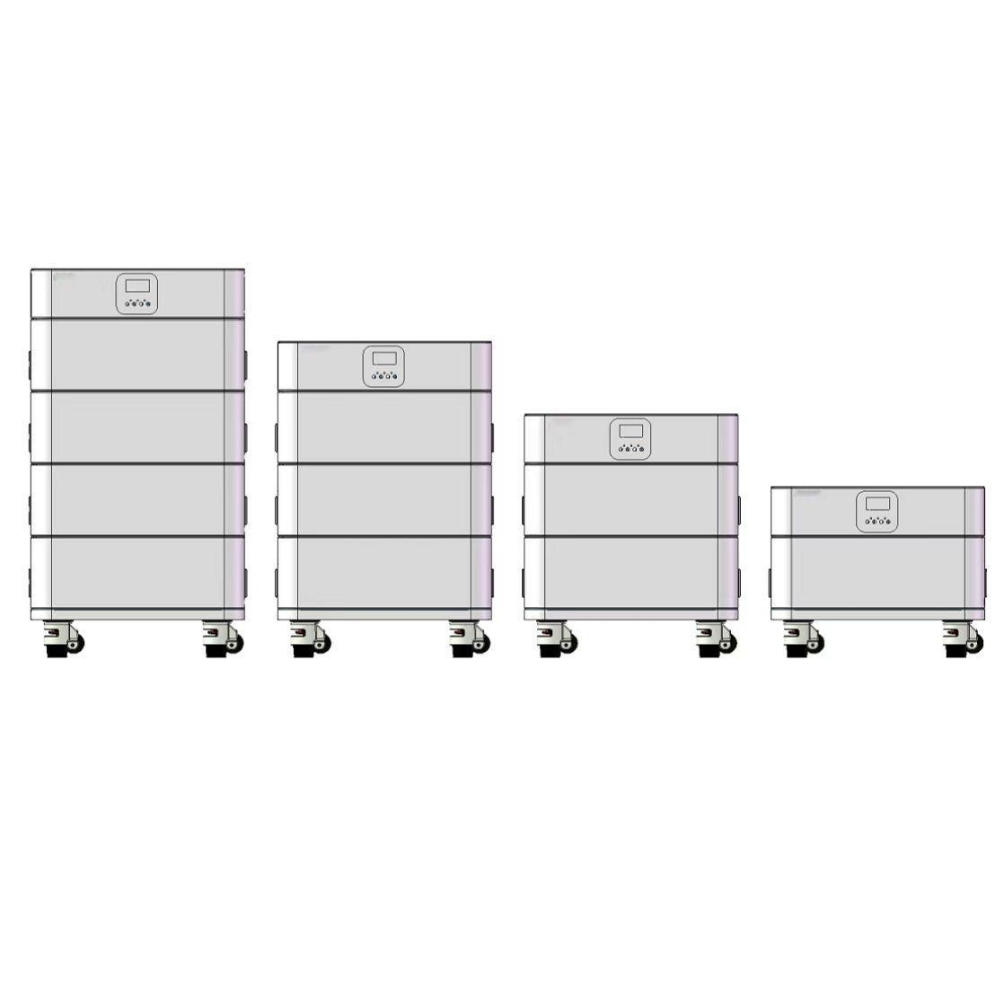

Solar Generator H8000 Series (1.5-5KW)
DAQIN H8000 series Solar Generator , support 1.5KW 3KW 5KW output for different load appliances. It's based on the original cabinetdesign, stacked with solar energy storage lithium battery kwh, 1.2kwh, 3kwh, 5kwh, and built in battery protection system, fully retain the use of loadpower in applications of residential, school, commercial and public utility area.
Features:
- 1.5--5KW Energy;
- 4000+ Charge Cycles;
- LiFePO4 battery pack;
- Bult-in Solar Inverter.
Highlights
Features higher capacities for greater compatibility with more power-hungry devices
Includes pre-installed solar charging optimization module that functions as a maximum power point tracker (MPPT), resulting in up to 40% faster charge times.
With LiFePO4 lithium cells, known for stability and safety, monitored by a state-of-the-art battery management system thatprevents over-charge, over-current, and short circuiting.
Built in Multi safety protection that include short circuit, overload and over-temperture and error code reporting.
MODEL | H8000-1524 | H8000-3024 | H8000-5024 | |||||
Inverter | ||||||||
Rated power | 1500W | 3000W | 5000W | |||||
Output voltage waveform | Pure sine wave | |||||||
Output voltage regulation | 230Vac ±5% | |||||||
Output frequency | 50Hz / 60Hz (±0.2Hz) | |||||||
Peak efficiency | 90% | |||||||
Nominal DC input voltage | 12Vdc (±0.3) | 24Vdc (±0.3) | 24Vdc (±0.3) | |||||
Standby Consumption | < 25W | |||||||
PV Input | ||||||||
Max solar power input | 1500W | 3000W | 5000W | |||||
PV max charging current | 60A (±3A) | 60A (±3A) | 60A (±3A) | |||||
Combined charging current | 70A (±4A) | 80A (±4A) | 80A (±4A) | |||||
Max efficiency | 98.0% max | |||||||
PV array open circuit voltage | 105VDC | 145VDC | 145VDC | |||||
PV Array MPPT Voltage Range | 15~105V | 30~120VDC | 30~120VDC | |||||
AC Input | ||||||||
AC input voltage | 230Vac ±5% | |||||||
Acceptable input voltage range | 90-280VAC | |||||||
Nominal input frequency | 50Hz / 60Hz (Auto detection) | |||||||
Transfer time | 10ms typical (UPS, VDE); 20ms typical (APL) | |||||||
AC Charge | ||||||||
Charging current @ Nominal input voltage | 10/20A (±4A) | 20A/30A (±4A) | 20A/30A (±4A) | |||||
Charging Algorithm | 4-step (Li) | |||||||
Output | ||||||||
AC output | 230Vac | |||||||
USB (5V 2.4A) | DC output*2pcs | |||||||
USB (12V 1A) | DC output*1pcs | |||||||
Lithium Battery | ||||||||
Energy | 1200Wh | 3000Wh | 5000Wh | |||||
Nominal voltage | 12.8V | 25.6V | 25.6V | |||||
Standard charging & discharge current | 50A | 50A | 100A | |||||
Maximum continuous charging & discharge current | 100A | 100A | 200A | |||||
Operation temperature | ||||||||
Charge | 0~45℃ | |||||||
Discharge | -10~60℃ | |||||||
Dimension | ||||||||
Product Size (LxWxH) (mm) | 379*254*498.5 | 379*254*498.5 | 351*300*538.5 | |||||
Packing Size (LxWxH) (mm) | 467*342*670 | 467*342*670 | 439*388*690 | |||||
Net Weight (kg) | 24 | 31 | 39.5 | |||||
Gross Weight (kg) | 35 | 42 | 55 |
